Lattice Semiconductor
LCMXO2-1200HC-5TG100I
Field Programmable Gate Array, 133MHz, 1280-Cell, CMOS, PQFP100, TQFP-100
Frequency323MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-1200HC-5TG100I technical specifications.
General
Package/Case
TQFP
Lead Free
Lead Free
Max Frequency
323MHz
Max Operating Temperature
100°C
Max Supply Voltage
3.465V
Memory Size
138Kb
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Gates
1280
Number of I/Os
80
Number of Logic Blocks (LABs)
160
Number of Logic Elements/Cells
1280
Number of Macrocells
640
Operating Supply Current
56uA
Operating Supply Voltage
2.5V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
65536b
RoHS Compliant
Yes
Series
MachXO2
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LCMXO2-1200HC-5TG100I Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-1200HC-5TG100I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

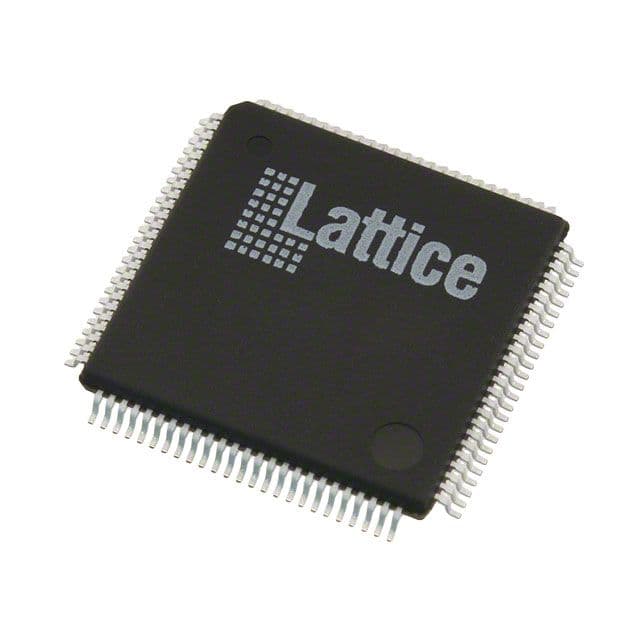

Product Images
