LATTICE SEMICONDUCTOR

LCMXO2-640ZE-1TG100I

Datasheet

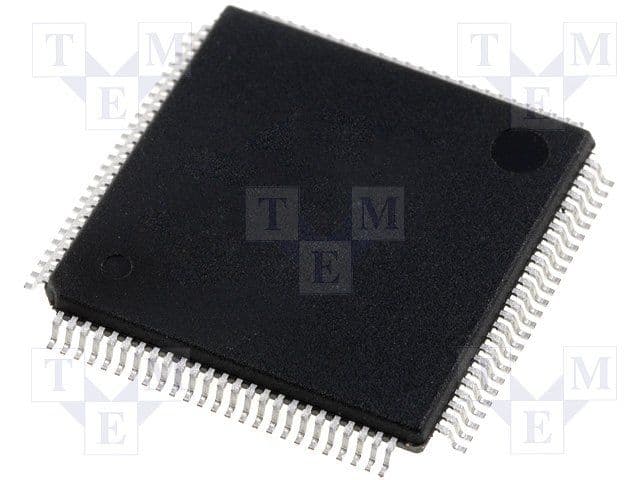

MachXO2 640 Logic FPGA, 104MHz, 1.14-1.26V, TQFP-100

Lattice Semiconductor

LCMXO2-640ZE-1TG100I

Name: LCMXO2-640ZE-1TG100I Lattice Semiconductor
Brand: Lattice Semiconductor
SKU: LCMXO2-640ZE-1TG100I

MachXO2 640 Logic FPGA, 104MHz, 1.14-1.26V, TQFP-100

The LCMXO2-640ZE-1TG100I is a 640 logic element Field Programmable Gate Array (FPGA) from Lattice Semiconductor. It operates at a maximum frequency of 133MHz and a minimum operating temperature of -40°C. The device is packaged in a TQFP-100 package and is suitable for surface mount applications. The FPGA has 47Kb of memory and 79 I/Os. It is compliant with RoHS regulations and has a maximum operating temperature of 100°C.

Frequency104MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Lattice Semiconductor LCMXO2-640ZE-1TG100I technical specifications.

General

Package/Case	TQFP
Frequency	104MHz
Lead Free	Lead Free
Max Frequency	133MHz
Max Operating Temperature	100°C
Memory Size	47Kb
Min Operating Temperature	-40°C
Max Supply Voltage	1.26V
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of I/Os	79
Number of Logic Blocks (LABs)	80
Number of Logic Elements/Cells	640
Number of Macrocells	320
Operating Supply Current	28uA
Operating Supply Voltage	1.2V
Package Quantity	90
Packaging	Tray
Propagation Delay	10.21ns
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MachXO2
