Lattice Semiconductor
LFE2-35E-5FN484C
Field Programmable Gate Array, 311MHz, 35000-Cell, PBGA484, 23 X 23 MM, LEAD FREE, FPBGA-484
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LFE2-35E-5FN484C technical specifications.
General
| Package/Case | FBGA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 396Kb |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.26V |
| Min Supply Voltage | 1.14V |
| Mount | Surface Mount |
| Number of I/Os | 331 |
| Number of Logic Blocks (LABs) | 4000 |
| Number of Logic Elements/Cells | 32000 |
| Number of Macrocells | 16000 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 339968b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECP2 |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LFE2-35E-5FN484C Datasheet
Download the complete datasheet for Lattice Semiconductor LFE2-35E-5FN484C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

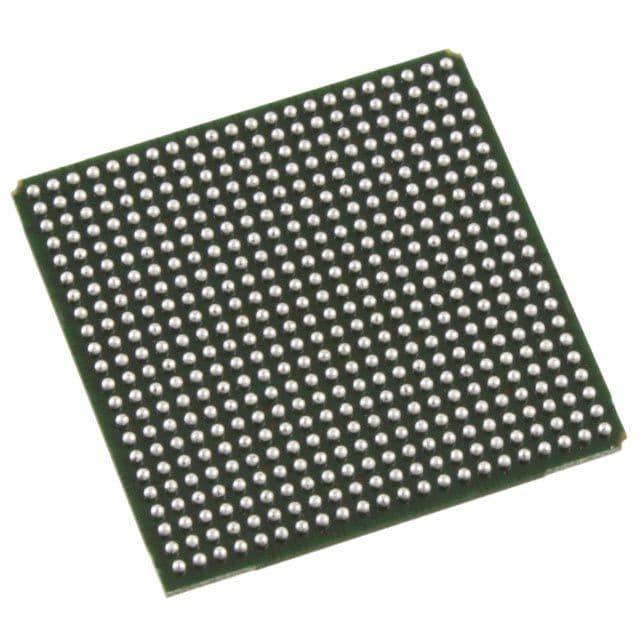

Product Images
