Field Programmable Gate Array (FPGA) with 34,000 logic elements and 4,250 logic blocks. Features a 311MHz maximum frequency, 2.17Mb memory size, and 410 I/Os. Operates at 1.2V supply voltage, with a range of 1.14V to 1.26V. Packaged in a 672-pin FBGA (27x27mm, 1.65mm height) for surface mounting. RoHS compliant and lead-free.
Frequency311MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LFE2M35E-5FN672C technical specifications.
General
Package/Case
FBGA
Height
1.65mm
Lead Free
Lead Free
Length
27mm
Max Frequency
311MHz
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Supply Voltage
1.26V
Memory Size
2172Kb
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of I/Os
410
Number of Logic Blocks (LABs)
4250
Number of Logic Elements/Cells
34000
Number of Macrocells
16000
Operating Supply Voltage
1.2V
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
RAM Size
2151424b
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECP2M
Width
27mm
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LFE2M35E-5FN672C Datasheet
Download the complete datasheet for Lattice Semiconductor LFE2M35E-5FN672C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

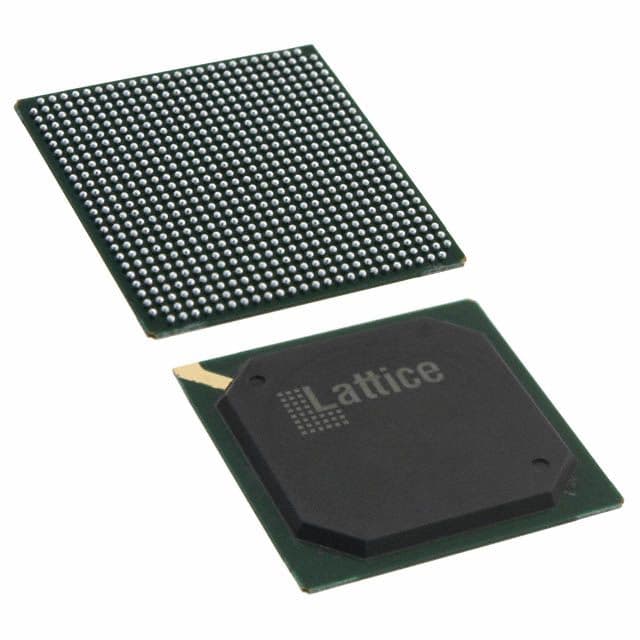

Product Images
