Lattice Semiconductor
LFE2M35SE-5FN256C
Field Programmable Gate Array, 311MHz, 35000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256
Frequency320MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LFE2M35SE-5FN256C technical specifications.
General
| Package/Case | BGA |
| Lead Free | Lead Free |
| Max Frequency | 320MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 2172Kb |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of I/Os | 140 |
| Number of Logic Blocks (LABs) | 4250 |
| Number of Logic Elements/Cells | 34000 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 90 |
| Packaging | Tray |
| RAM Size | 2151424b |
| RoHS Compliant | Yes |
| Series | ECP2M |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LFE2M35SE-5FN256C Datasheet
Download the complete datasheet for Lattice Semiconductor LFE2M35SE-5FN256C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

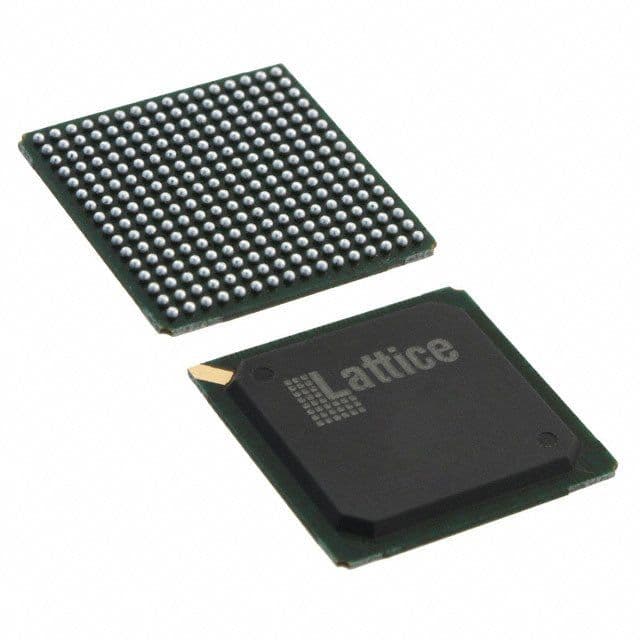

Product Images
