The CASR15-NP current sensor module from LEM offers 15A current sensing with an accuracy of 0.8%. It operates within a temperature range of -40°C to 85°C and has a maximum supply current of 20mA. The module is packaged in a rail or tube format and is compatible with RoHS regulations. It has a response time of 0.3us and a sensitivity of 41.67mV/A.
Frequency300kHz
PackageModule
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
LEM CASR15-NP technical specifications.
General
| Accuracy | 0.8% |
| Package/Case | Module |
| Current Sensing | 15A |
| Frequency | 300kHz |
| Linearity | 1% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 20mA |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Operating Supply Voltage | 5.25V |
| Overall Depth | 13.4mm |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Response Time | 0.3us |
| RoHS Compliant | Yes |
| Sensitivity | 41.67mV/A |
| Series | CASR |
Compliance
| RoHS | Compliant |
Datasheet
LEM CASR15-NP Datasheet
Download the complete datasheet for LEM CASR15-NP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

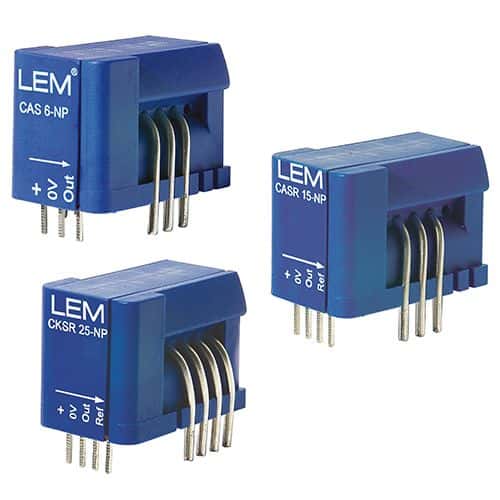

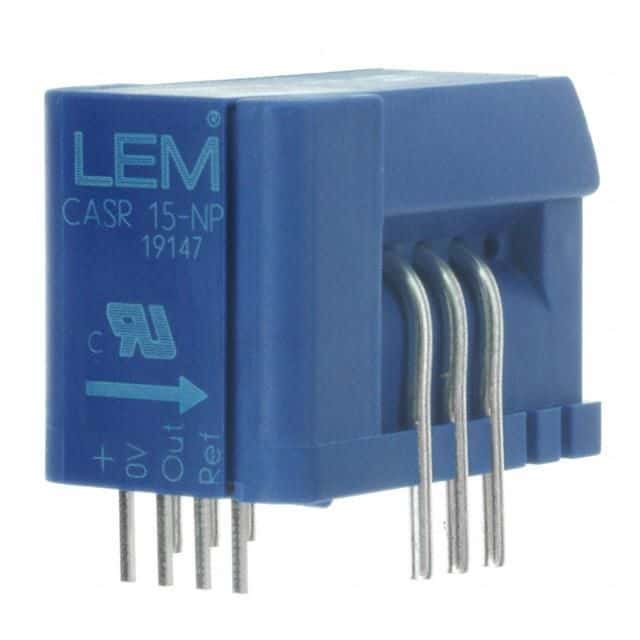

Product Images
