Surface mount resettable fuse for overcurrent protection. Features a 2A current rating and 125VAC/VDC voltage rating. Designed with a ceramic and thermoplastic body, it offers a DC cold resistance of 36.7mR and a typical resistance of 62.5mR. Operating temperature range is -55°C to 125°C, with a UL94 V-0 flammability rating. This RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
Storage5.03mm
Resistance62.5mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0154002.DR technical specifications.
General
Approvals
UL, PSE
Body Material
Ceramic, Thermoplastic
Package/Case
SMD/SMT
Current Rating
2A
DC Cold Resistance
36.7mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
2A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
62.5mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154002.DR Datasheet
Download the complete datasheet for Littelfuse 0154002.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

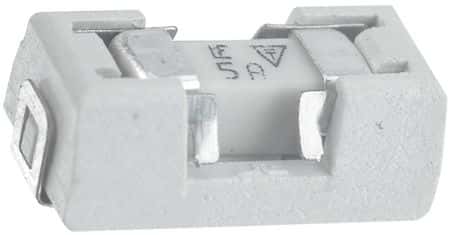

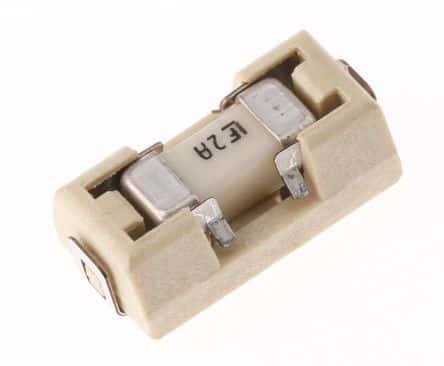

Product Images
