Surface mount resettable fuse, 2A current rating, 125VAC/VDC voltage rating. Features low DC cold resistance of 62.5mR and a maximum operating temperature of 125°C. Constructed with a thermoplastic body and copper terminals, this RoHS compliant component is supplied in tape and reel packaging. Approved by UL and PSE, it offers UL94 V-0 flammability rating.
PackageSMD/SMT
Storage5.03mm
Resistance62.5mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0154002.DRT technical specifications.
General
Approvals
UL, PSE
Body Material
Thermoplastic
Package/Case
SMD/SMT
Current Rating
2A
DC Cold Resistance
62.5mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
2A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
62.5mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154T
Size
5.03mm
Terminal Material
Copper
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154002.DRT Datasheet
Download the complete datasheet for Littelfuse 0154002.DRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

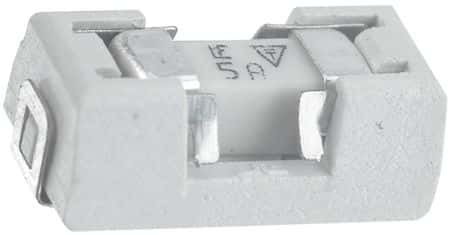

Product Images
