Surface mount PTC resettable fuse rated for 3A and 125VAC/VDC. Features a low DC cold resistance of 22.7mR and a maximum operating temperature of 125°C. Constructed with UL94 V-0 rated thermoplastic and copper terminals, this RoHS compliant component is supplied in tape and reel packaging. Approvals include UL and PSE.
PackageSMD/SMT
Storage5.03mm
Resistance22.7mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0154003.DR technical specifications.
General
Approvals
UL, PSE
Body Material
Thermoplastic
Package/Case
SMD/SMT
Current Rating
3A
DC Cold Resistance
22.7mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
3A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
22.7mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Terminal Material
Copper
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154003.DR Datasheet
Download the complete datasheet for Littelfuse 0154003.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

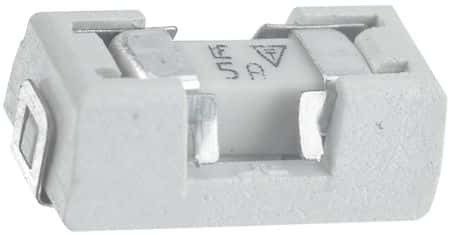

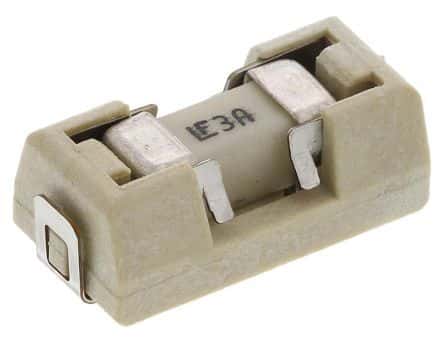

Product Images
