Surface mount PTC resettable fuse, 3A current rating, 125V AC/DC voltage rating. Features 34mR DC cold resistance and 125W power dissipation. Constructed with thermoplastic body and copper terminals, it offers UL94 V-0 flammability rating and operates from -55°C to 125°C. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Resistance34mR
Voltage Rating125V
Current Rating3A
Quick Jump:
Technical Specifications
Littelfuse 0154003.DRT technical specifications.
General
Approvals
UL, PSE
Body Material
Thermoplastic
Package/Case
SMD/SMT
Current Rating
3A
DC Cold Resistance
34mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
3A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
34mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154T
Terminal Material
Copper
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154003.DRT Datasheet
Download the complete datasheet for Littelfuse 0154003.DRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

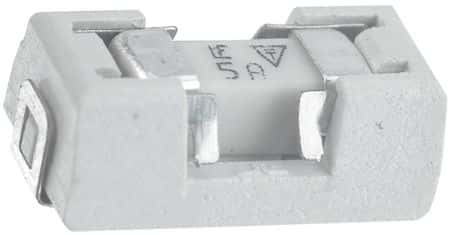

Product Images
