Surface mount PTC resettable fuse rated for 7A and 125VAC/VDC. Features a low DC cold resistance of 9mR and a maximum operating temperature of 125°C. Constructed with a UL94 V-0 rated thermoplastic body and copper terminals. This lead-free, RoHS-compliant component is supplied in tape and reel packaging.
PackageSMD/SMT
Storage5.03mm
Resistance9mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0154007.DR technical specifications.
General
Approvals
UL, PSE
Body Material
Thermoplastic
Package/Case
SMD/SMT
Current Rating
7A
DC Cold Resistance
9mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
7A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
9mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Terminal Material
Copper
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154007.DR Datasheet
Download the complete datasheet for Littelfuse 0154007.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

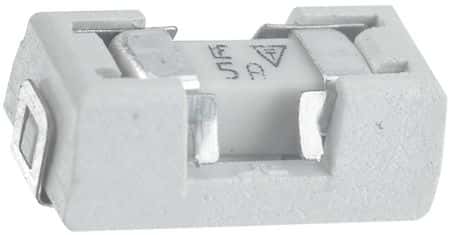

Product Images
