Surface mount PTC resettable fuse, 8A current rating, 125VAC/VDC voltage rating. Features a ceramic and thermoplastic body, UL94 V-0 flammability rating, and 7.7mΩ DC cold resistance. Operates from -55°C to 125°C with 125W power dissipation. Compliant with RoHS and UL, PSE approvals. Packaged in tape and reel for 1500 units.
PackageSMD/SMT
Storage5.03mm
Voltage Rating125V
Current Rating8A
Quick Jump:
Technical Specifications
Littelfuse 0154008.DR technical specifications.
General
Approvals
UL, PSE
Body Material
Ceramic, Thermoplastic
Package/Case
SMD/SMT
Current Rating
8A
DC Cold Resistance
7.7mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
8A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154008.DR Datasheet
Download the complete datasheet for Littelfuse 0154008.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

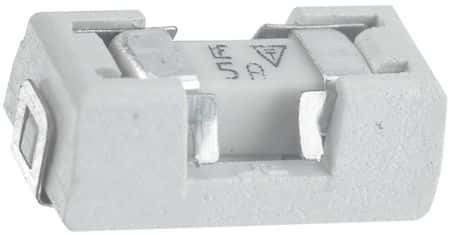

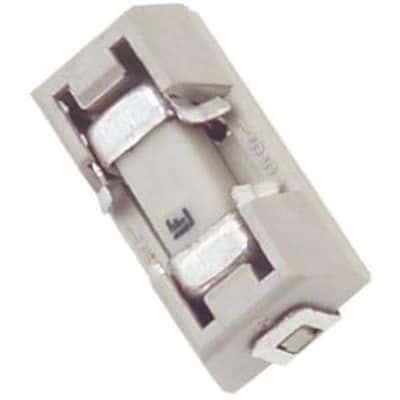

Product Images
