Surface mount PTC resettable fuse rated for 10A and 125VAC/VDC. Features a low 5.6mR DC cold resistance and 125W power dissipation. Constructed with ceramic and thermoplastic body materials, it meets UL94 V-0 flammability standards and is RoHS compliant. Operating temperature range from -55°C to 125°C. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Storage5.03mm
Resistance5.6mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0154010.DR technical specifications.
General
Approvals
UL, PSE
Body Material
Ceramic, Thermoplastic
Package/Case
SMD/SMT
Color
White
Current Rating
10A
DC Cold Resistance
5.6mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
5.6mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0154010.DR Datasheet
Download the complete datasheet for Littelfuse 0154010.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

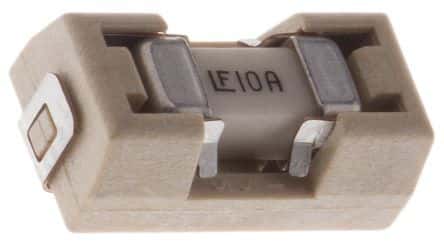

Product Images
