Surface mount resettable fuse with a 2.5A current rating and 125VAC/VDC voltage rating. Features low DC cold resistance of 28.6mR and a maximum operating temperature of 125°C. Compliant with UL and PSE approvals, RoHS, and UL94 V-0 flammability rating. Packaged in tape and reel for efficient surface mount assembly.
PackageSMD/SMT
Storage5.03mm
Resistance28.6mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 015402.5DR technical specifications.
General
Approvals
UL, PSE
Package/Case
SMD/SMT
Current Rating
2.5A
DC Cold Resistance
28.6mR
Depth
5.03mm
Flammability Rating
UL94 V-0
Fuse Current
2.5A
Height
3.81mm
Lead Free
Lead Free
Length
9.73mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, Holder
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
28.6mR
RoHS Compliant
Yes
Series
OMNI-BLOK® 154
Size
5.03mm
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
5.03mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 015402.5DR Datasheet
Download the complete datasheet for Littelfuse 015402.5DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

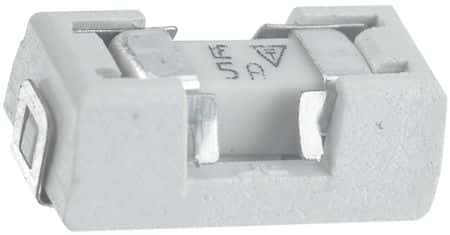

Product Images
