Littelfuse
0202.250URG
Fuse Subminiature Slow Blow Acting 0.25A 250V SMD Gull Wing 10.16 X 6.35 X 4.19mm Thermoplastic T/R CSA/UL
PackageSMD/SMT
Resistance880mR
Current Rating250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse 0202.250URG technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | SMD/SMT |
| Current Rating | 250mA |
| DC Cold Resistance | 880mR |
| Height | 0.165inch |
| Lead Free | Contains Lead |
| Length | 0.372inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Resistance | 880mR |
| RoHS Compliant | No |
| Series | FLAT-PAK® 202 |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 0.25inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Littelfuse 0202.250URG Datasheet
Download the complete datasheet for Littelfuse 0202.250URG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

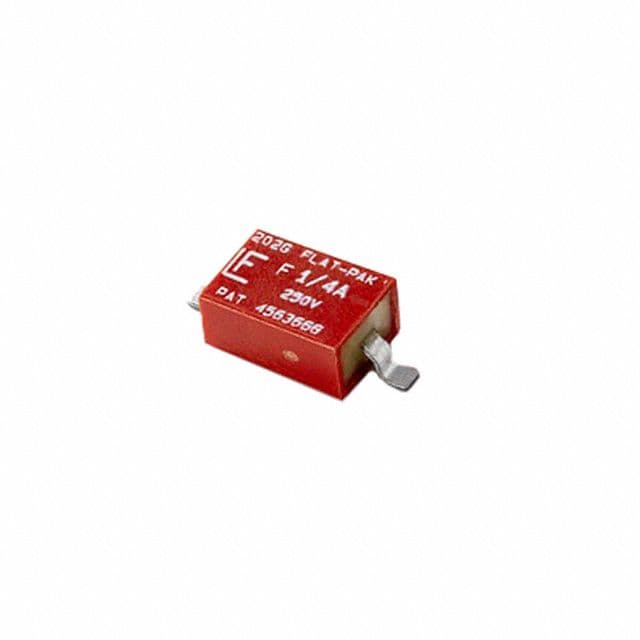

Product Images
