Time-lag electric fuse, 5A current rating, 250VAC/250VDC voltage rating, and 50A interrupting rating. Features a glass body, brass contacts with nickel plating, and through-hole mounting. Operates across a temperature range of -55°C to 125°C with a resistance of 11mR. Compliant with ROHS and approved by CSA, VDE, CE, UR, CCC, PSE, BSI, and SEMKO.
Storage20mm
Resistance11mR
Voltage Rating250V
Current Rating5A
Quick Jump:
Technical Specifications
Littelfuse 0213005.MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
5A
DC Cold Resistance
11.6mR
Diameter
5mm
Fuse Current
5A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
11mR
RoHS Compliant
Yes
Series
213
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0213005.MXP Datasheet
Download the complete datasheet for Littelfuse 0213005.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

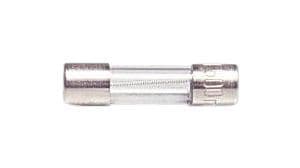

Product Images
