Time lag electric fuse, 1.6A current rating, 250VAC/250VDC voltage rating, and 35A interrupting rating. Features a 5x20mm glass body with brass contacts plated in nickel. Operates across a wide temperature range from -55°C to 125°C, with a power dissipation of 1.6W and a DC cold resistance of 55.1mR. This through-hole fuse is RoHS compliant and carries multiple international approvals including CSA, VDE, and CE.
Storage20mm
Resistance55mR
Voltage Rating250V
Current Rating1.6A
Quick Jump:
Technical Specifications
Littelfuse 021301.6MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
1.6A
DC Cold Resistance
55.1mR
Diameter
5mm
Fuse Current
1.6A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
55mR
RoHS Compliant
Yes
Series
213
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021301.6MXP Datasheet
Download the complete datasheet for Littelfuse 021301.6MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

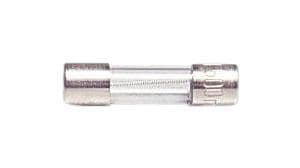

Product Images
