Time lag electric fuse with a 3.15A current rating and 250VAC/250VDC voltage rating. Features a 5x20mm glass body, brass contacts with nickel plating, and a 35A interrupting rating. Operates across a wide temperature range from -55°C to 125°C. Certified by CSA, VDE, CE, UR, CCC, PSE, BSI, and SEMKO, this RoHS compliant fuse is suitable for through-hole mounting.
Storage20mm
Resistance22mR
Voltage Rating250V
Current Rating3.15A
Quick Jump:
Technical Specifications
Littelfuse 02133.15MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
3.15A
DC Cold Resistance
23.1mR
Diameter
5mm
Fuse Current
3.15A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
22mR
RoHS Compliant
Yes
Series
213
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 02133.15MXP Datasheet
Download the complete datasheet for Littelfuse 02133.15MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

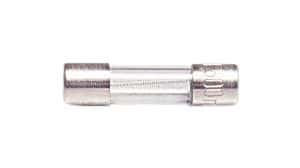

Product Images
