Miniature slow-blow fuse, 200mA current rating at 250V AC/DC. Features a 5mm x 20mm ceramic cartridge body with brass, nickel-plated clip terminations. Operates across a wide temperature range from -55°C to 125°C with a maximum power dissipation of 1.6W. This RoHS compliant component is supplied in bulk packaging and holds UL, VDE, CE, and SEMKO approvals.
PackageCeramic
Storage20mm
Resistance1.84R
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0215.200MXP technical specifications.
General
Approvals
UL, VDE, CE, SEMKO
Blow Characteristic
TIME DELAY
Body Diameter
5mm
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
200mA
DC Cold Resistance
1.84R
Diameter
5mm
Fuse Current
200mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
Unknown
Resistance
1.84R
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215.200MXP Datasheet
Download the complete datasheet for Littelfuse 0215.200MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

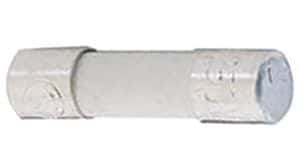

Product Images
