Time lag electric fuse, 500mA current rating, 250VAC/250VDC voltage rating, 1500A interrupting rating. Features ceramic body, brass contacts with nickel plating, and a 5x20mm size. Operates within a temperature range of -55°C to 125°C. RoHS compliant with UL, CSA, VDE, CE, and SEMKO approvals.
PackageCeramic
Storage20mm
Resistance1.168R
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0215.500MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, SEMKO
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
500mA
DC Cold Resistance
1.1675R
Diameter
5mm
Fuse Current
500mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1.168R
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215.500MXP Datasheet
Download the complete datasheet for Littelfuse 0215.500MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

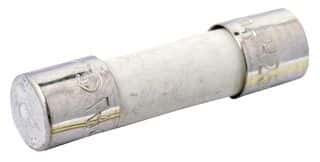

Product Images
