Littelfuse
0215002.MRET1P
Fuse Miniature Slow Blow Acting 2A 250V Axial 5 X 20mm Ceramic T/R CCC/CSA/KC/PSE/SEMKO/UL/VDE
PackageAxial
Resistance41mR
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse 0215002.MRET1P technical specifications.
General
| Approvals | UL, CSA, VDE, CE, CCC, PSE, SEMKO, KC |
| Package/Case | Axial |
| Current Rating | 2A |
| DC Cold Resistance | 56.6mR |
| Lead Free | Lead Free |
| Length | 0.886inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Resistance | 41mR |
| RoHS Compliant | Yes |
| Series | 215 |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0215002.MRET1P Datasheet
Download the complete datasheet for Littelfuse 0215002.MRET1P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

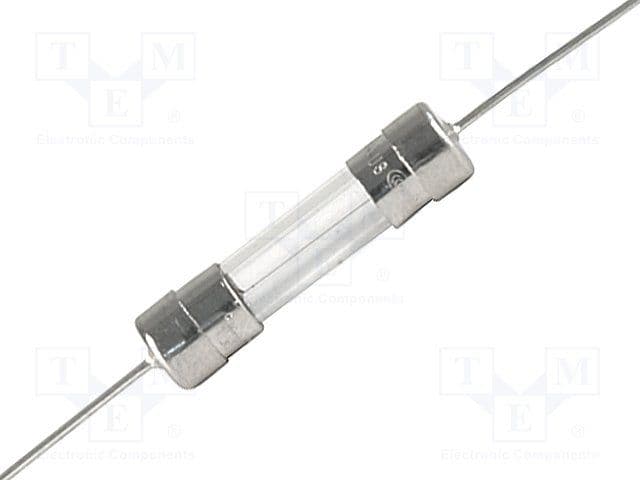

Product Images
