Time lag electric fuse, 5A current rating, 250VAC/250VDC voltage rating, with a 1500A interrupting rating. Features a 5x20mm ceramic body and brass contacts with nickel plating. Operates across a temperature range of -55°C to 125°C and offers 4W power dissipation. RoHS compliant and includes UL, CSA, VDE, CE, CCC, PSE, SEMKO, and KC approvals.
PackageCeramic
Current5A
Storage20mm
Resistance15mR
Quick Jump:
Technical Specifications
Littelfuse 0215005.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, KC
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current
5A
Current Rating
5A
DC Cold Resistance
15.3mR
Diameter
5mm
Fuse Current
5A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
15mR
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215005.MXP Datasheet
Download the complete datasheet for Littelfuse 0215005.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

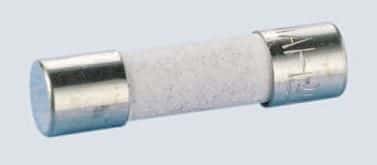

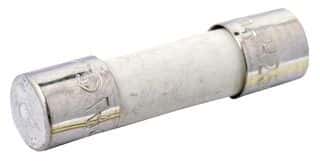

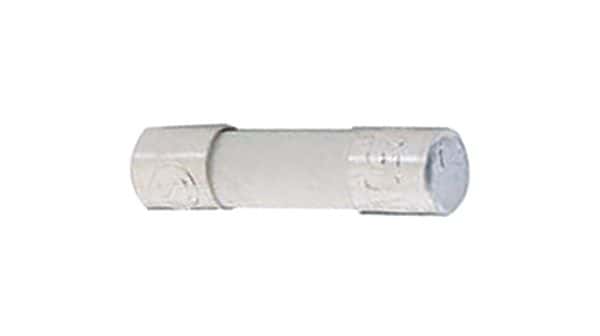

Product Images
