Time-delay electric fuse with a 10A current rating and 250VAC/250VDC voltage rating. Features a 1500A interrupting rating and a ceramic body with brass, nickel-plated contacts. Designed for inline or holder mounting with a 5x20mm fuse size. Operating temperature range is -55°C to 125°C. Approvals include UL, CSA, VDE, CE, PSE, SEMKO, and KC.
PackageCeramic
Storage20mm
Resistance7mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0215010.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, PSE, SEMKO, KC
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
10A
DC Cold Resistance
6.6mR
Diameter
5mm
Fuse Current
10A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
7mR
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215010.MXP Datasheet
Download the complete datasheet for Littelfuse 0215010.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

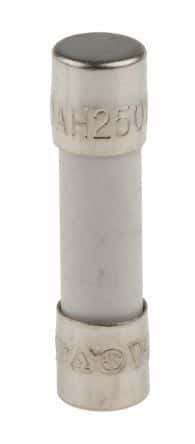

Product Images
