Time-delay electric fuse, 12A current rating, 250VAC/250VDC voltage rating, with a 1500A interrupt rating. Features a ceramic body, brass contacts with nickel plating, and a 5x20mm size. Designed for inline or holder mounting, this fuse operates within a -55°C to 125°C temperature range and is RoHS compliant. Approvals include UL, CSA, VDE, CE, PSE, and SEMKO.
PackageCeramic
Storage20mm
Resistance6mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0215012.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, PSE, SEMKO
Blow Characteristic
TIME DELAY
Body Diameter
5mm
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
12A
DC Cold Resistance
6.1mR
Diameter
5.2mm
Fuse Current
12A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
6mR
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215012.MXP Datasheet
Download the complete datasheet for Littelfuse 0215012.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

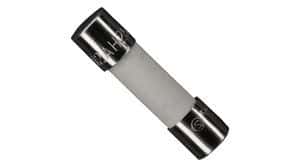

Product Images
