Time-lag electric fuse with a 6.3A current rating and 250VAC/250VDC voltage rating. Features a ceramic body and case, brass contacts with nickel plating, and a 5x20mm size. Offers a 1500A interrupting rating, 4W power dissipation, and operates within a -55°C to 125°C temperature range. This fuse is RoHS compliant and designed for holder or surface mount applications.
PackageCeramic
Storage20mm
Resistance11mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 021506.3MXP technical specifications.
General
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
6.3A
DC Cold Resistance
10.8mR
Diameter
5mm
Fuse Current
6.3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
11mR
RoHS Compliant
Yes
Series
215
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021506.3MXP Datasheet
Download the complete datasheet for Littelfuse 021506.3MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

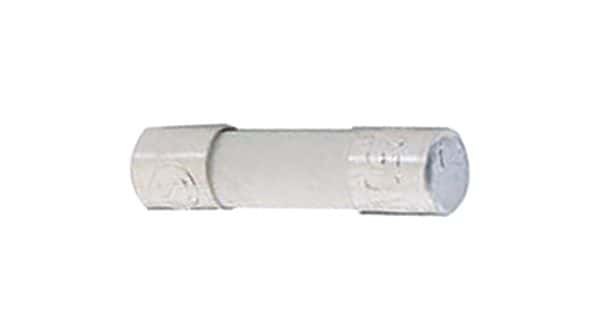

Product Images
