Fast-acting ceramic fuse, 100mA current rating, 250V AC/DC voltage rating. Features a 5 x 20mm cartridge size with brass end cap terminations. Operates within a temperature range of -55°C to 125°C, with a power dissipation of 1.6W. RoHS compliant and includes CCC, CE, CSA, SEMKO, VDE, and cULus approvals. Supplied in bulk packaging.
Resistance5.793R
Voltage Rating250V
Current Rating100mA
MountingHolder, Surface Mount
Quick Jump:
Technical Specifications
Littelfuse 0216.100MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, SEMKO
Body Diameter
5mm
Body Material
Ceramic
Contact Material
Brass
Current Rating
100mA
DC Cold Resistance
5.7925R
Diameter
5mm
Fuse Current
100mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Manufacturer Series
216
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
5.793R
RoHS Compliant
Yes
Series
216
Termination
End Cap
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0216.100MXP Datasheet
Download the complete datasheet for Littelfuse 0216.100MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

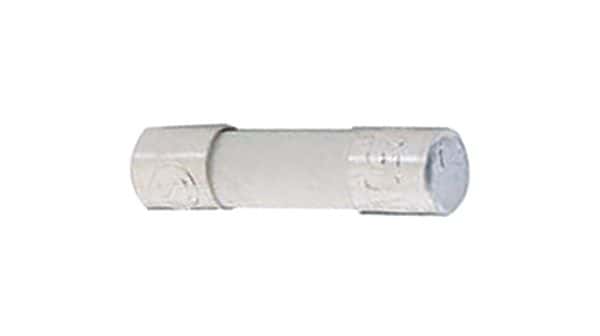

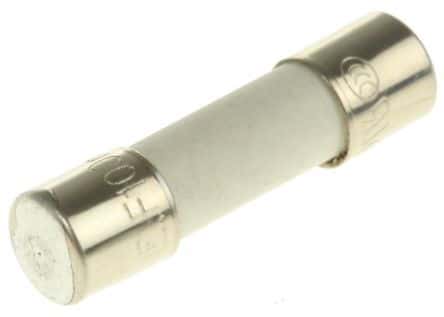

Product Images
