Miniature fast-acting fuse, 315mA current rating, 250V AC/DC voltage rating. Features a ceramic body, brass contacts, and 5 x 20mm cartridge dimensions. Operating temperature range from -55°C to 125°C with 1.85 Ohm resistance. Bulk packaged for high-volume applications, compliant with RoHS and multiple international safety standards including UL, CSA, VDE, CE, CCC, SEMKO, and UR.
Package315
Resistance1.85R
Voltage Rating250V
Current Rating315mA
Quick Jump:
Technical Specifications
Littelfuse 0216.315MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, UR
Body Material
Ceramic
Package/Case
315
Contact Material
Brass
Current Rating
315mA
DC Cold Resistance
1.85R
Diameter
5mm
Fuse Current
3.15A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1.85R
RoHS Compliant
Yes
Series
216
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0216.315MXP Datasheet
Download the complete datasheet for Littelfuse 0216.315MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

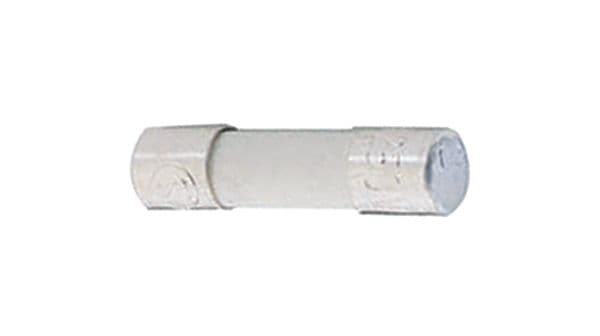

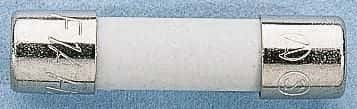

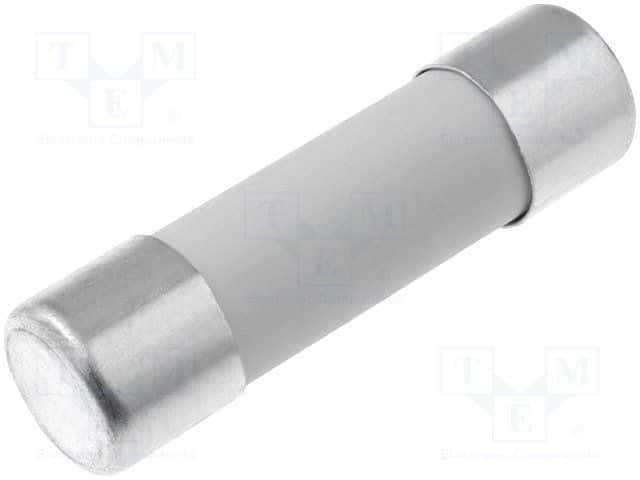

Product Images
