Miniature fast-acting fuse, 2A current rating, 250V voltage rating. Ceramic body construction with brass contacts. Features a 5mm diameter and 20mm length, designed for holder and surface mount applications. Operating temperature range from -55°C to 125°C. RoHS compliant and includes CCC, CE, CSA, KC, PSE, SEMKO, VDE, and cULus approvals.
PackageCeramic
Resistance76mR
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Littelfuse 0216002.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, KC
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Current Rating
2A
DC Cold Resistance
76.4mR
Diameter
5mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
76mR
RoHS Compliant
Yes
Series
216
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0216002.MXP Datasheet
Download the complete datasheet for Littelfuse 0216002.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

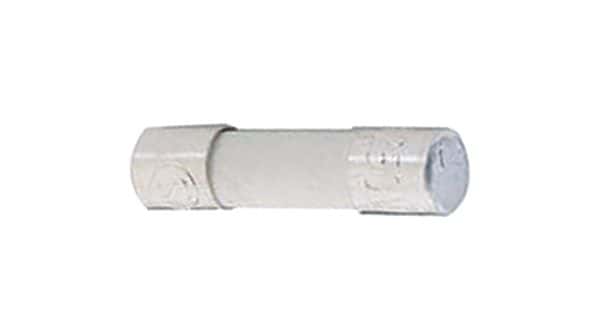

Product Images
