Miniature fast-acting fuse, 1.6A current rating at 250V AC/DC. Features a ceramic body construction with brass contacts and clip termination. Designed for holder mounting, this cartridge fuse measures 5mm in diameter and 20mm in length. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 111.2mR. RoHS compliant and available in bulk packaging.
PackageCeramic
Current1.6A
Resistance111mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 021601.6MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, KC
Body Diameter
5mm
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Current
1.6A
Current Rating
1.6A
DC Cold Resistance
111.2mR
Diameter
5mm
Fuse Current
1.6A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
111mR
RoHS Compliant
Yes
Series
216
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021601.6MXP Datasheet
Download the complete datasheet for Littelfuse 021601.6MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

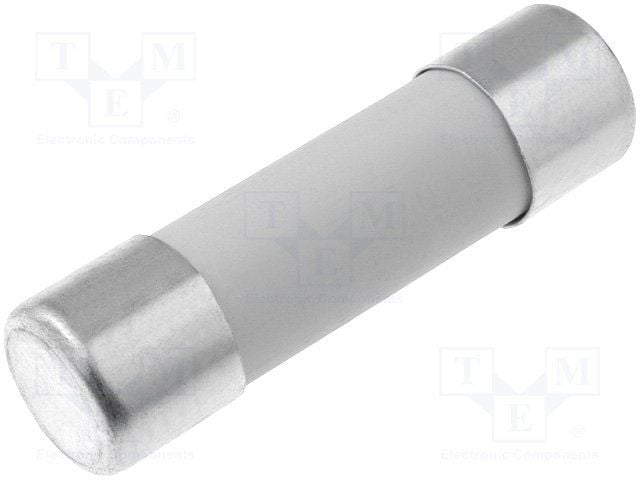

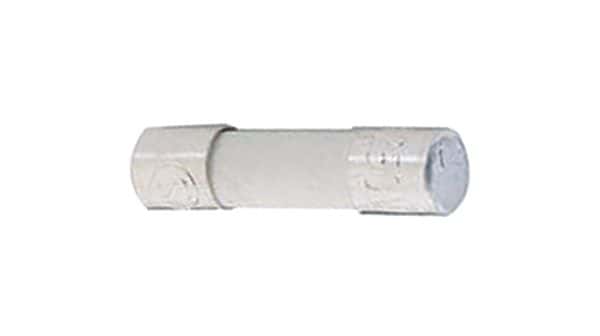

Product Images
