Miniature fast-acting fuse, cartridge type, 5 x 20mm size. Features a 12.5A current rating and 250V voltage rating. Constructed with a ceramic body and brass contacts with nickel plating. Operates across a temperature range of -55°C to 125°C, with a power dissipation of 4W. RoHS compliant and supplied in bulk packaging.
PackageAxial
Current12.5A
Storage20mm
Resistance6.2mR
Quick Jump:
Technical Specifications
Littelfuse 021612.5MXP technical specifications.
General
Body Diameter
5mm
Body Material
Ceramic
Package/Case
Axial
Contact Material
Brass
Contact Plating
Nickel
Current
12.5A
Current Rating
12.5A
DC Cold Resistance
5.7mR
Diameter
5mm
Fuse Current
12.5A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
6.2mR
RoHS Compliant
Yes
Series
216
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021612.5MXP Datasheet
Download the complete datasheet for Littelfuse 021612.5MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

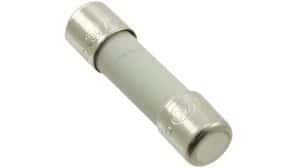

Product Images
