Fast-acting electric fuse, 0.5A current rating, designed for 250VAC and 250VDC applications. Features a 5x20mm glass body with brass, nickel-plated clip terminations for holder mounting. Offers a 35A interrupting rating and a maximum operating temperature of 125°C. This RoHS compliant component is UL, CSA, VDE, CE, CCC, SEMKO, and K-Mark approved.
Package217
Storage20mm
Resistance207mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217.500MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Body Diameter
5mm
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
500mA
DC Cold Resistance
206.5mR
Diameter
5.2mm
Fuse Current
500mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
207mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217.500MXP Datasheet
Download the complete datasheet for Littelfuse 0217.500MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

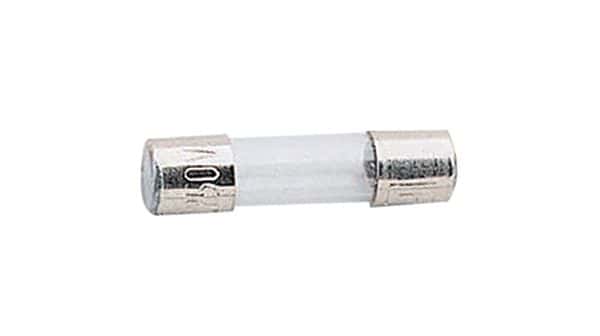

Product Images
