Glass body resettable fuse, 800mA current rating and 250V AC/DC working voltage. Features 120mΩ DC cold resistance and 1.6W maximum power dissipation. Operates across a -55°C to 125°C temperature range. Terminations are brass with nickel plating, suitable for holder or clip mounting. Approvals include UL, CSA, VDE, CE, CCC, SEMKO, and K-Mark.
Storage20mm
Resistance120mR
Voltage Rating250V
Current Rating800mA
Quick Jump:
Technical Specifications
Littelfuse 0217.800HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
800mA
DC Cold Resistance
120.3mR
Diameter
5.2mm
Fuse Current
800mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Holder, Clip
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
Unknown
Resistance
120mR
Series
217
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217.800HXP Datasheet
Download the complete datasheet for Littelfuse 0217.800HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

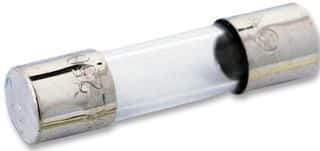

Product Images
