Fast-acting electric fuse, 2A current rating, 250VAC/250VDC voltage rating, with a 35A interrupting rating. Features a 5x20mm glass body, brass contacts with nickel plating, and a DC cold resistance of 41.6mR. Designed for holder or surface mount applications, operating within a temperature range of -55°C to 125°C. RoHS compliant and approved by CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, and KC.
Package217
Storage20mm
Resistance42mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217002.MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
2A
DC Cold Resistance
41.6mR
Diameter
5mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Manufacturer Series
217
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
42mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217002.MXP Datasheet
Download the complete datasheet for Littelfuse 0217002.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

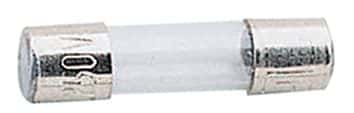

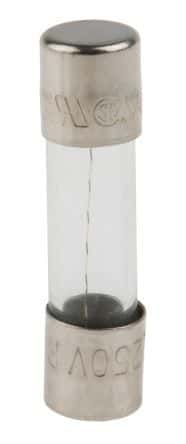

Product Images
