Fast-acting electric fuse with a 1.6A current rating and 250VAC/250VDC voltage rating. Features a 5x20mm glass body, brass nickel-plated clip terminations, and a 35A interrupting rating. Operates across a wide temperature range from -55°C to 125°C, with a low DC cold resistance of 52.8mR and 53mR resistance. This RoHS compliant component is suitable for inline or holder mounting and holds multiple international approvals including UL, CSA, and VDE.
Package217
Storage20mm
Resistance53mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 021701.6MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Body Diameter
5mm
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
1.6A
DC Cold Resistance
52.8mR
Diameter
5mm
Fuse Current
1.6A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
Unknown
Resistance
53mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021701.6MXP Datasheet
Download the complete datasheet for Littelfuse 021701.6MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

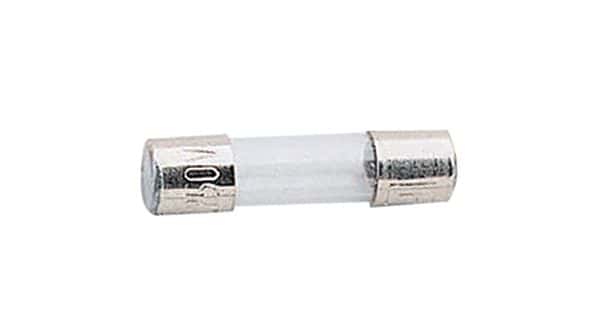

Product Images
