Fast-acting electric fuse, 10A current rating, with 250VAC and 250VDC voltage ratings. Features a 5x20mm glass body construction and 100A interrupting rating. Designed for inline or holder mounting with brass, nickel-plated clip terminations. Operates across a wide temperature range from -55°C to 125°C and is RoHS compliant.
Package217
Storage20mm
Resistance6mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217010.MXP technical specifications.
General
Approvals
VDE, CE, PSE, K-Mark
Body Diameter
5mm
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
10A
DC Cold Resistance
6.3mR
Diameter
5mm
Fuse Current
10A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
6mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217010.MXP Datasheet
Download the complete datasheet for Littelfuse 0217010.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

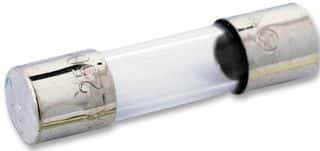

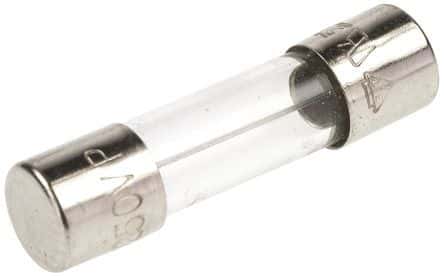

Product Images
