Fast-acting electric fuse with a 6.3A current rating and 250VAC voltage rating. Features a 5x20mm glass body, brass contacts with nickel plating, and axial leads for holder or clip mounting. Operates across a wide temperature range from -55°C to 125°C, with a maximum power dissipation of 2.5W. Compliant with RoHS standards and holds multiple international approvals including CSA, VDE, and CE.
PackageAxial
Storage20mm
Resistance9mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 021706.3HXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC
Body Material
Glass
Package/Case
Axial
Contact Material
Brass
Contact Plating
Nickel
Current Rating
6.3A
DC Cold Resistance
9.5mR
Diameter
5.2mm
Fuse Current
6.3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount, Clip
Package Quantity
100
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
9mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021706.3HXP Datasheet
Download the complete datasheet for Littelfuse 021706.3HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

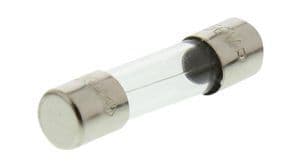

Product Images
