Fast-acting electric fuse with a 6.3A current rating and 250VAC/250VDC voltage rating. Features a 5x20mm glass body, brass contacts, and a 63A interrupt rating. Operates across a wide temperature range from -55°C to 125°C with a power dissipation of 2.5W. Compliant with RoHS and various international approvals including CSA, VDE, and CE. Designed for holder or inline mounting with through-hole termination.
Package217
Storage20mm
Resistance9mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 021706.3MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC
Body Diameter
5mm
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Glass
Current Rating
6.3A
DC Cold Resistance
9.5mR
Diameter
5mm
Fuse Current
6.3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
9mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021706.3MXP Datasheet
Download the complete datasheet for Littelfuse 021706.3MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

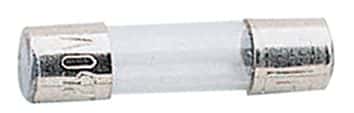

Product Images
