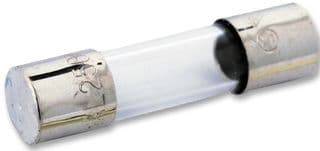

Miniature fast-acting fuse, 3.15A current rating and 250V AC/DC working voltage. Features a glass body with brass contacts, measuring 5.2mm diameter and 20mm length. Operates across a wide temperature range from -55°C to 125°C. Compliant with RoHS standards and holds multiple international approvals including UL, CE, and VDE. Supplied in bulk packaging with 100 units per package.
Storage20mm
Resistance22mR
Voltage Rating250V
Current Rating3.15A
Quick Jump:
Technical Specifications
Littelfuse 02173.15HXP technical specifications.
General
| Approvals | CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC |
| Body Material | Glass |
| Contact Material | Brass |
| Current Rating | 3.15A |
| DC Cold Resistance | 22.4mR |
| Diameter | 5.2mm |
| Fuse Current | 3.15A |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder, Surface Mount, Clip |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 22mR |
| RoHS Compliant | Yes |
| Series | 217 |
| Size | 20mm |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
