Time-delay electric fuse, 0.1A current rating, 250VAC voltage rating, with a 35A interrupting rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm fuse size. Suitable for inline or holder mounting, this RoHS compliant component operates within a -55°C to 125°C temperature range and has a power dissipation of 1.6W. Approvals include UL, CSA, VDE, CE, CCC, SEMKO, and K-Mark.
Package100
Resistance8.95R
Voltage Rating250V
Current Rating100mA
Quick Jump:
Technical Specifications
Littelfuse 0218.100MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Package/Case
100
Contact Material
Brass
Contact Plating
Nickel
Current Rating
100mA
DC Cold Resistance
8.905R
Diameter
5mm
Fuse Current
100mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
8.95R
RoHS Compliant
Yes
Series
218
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218.100MXP Datasheet
Download the complete datasheet for Littelfuse 0218.100MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

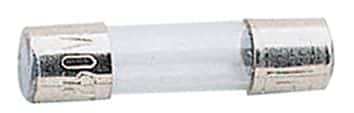

Product Images
