Time delay electric fuse, 125mA current rating, 250VAC voltage rating, and 35A interrupt rating. Features a 5x20mm glass body with brass nickel-plated contacts. Designed for supplemental circuit protection with a holder mount and through-hole termination. Operating temperature range from -55°C to 125°C. RoHS compliant.
Package125
Current12.5A
Resistance42mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0218.125MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Diameter
20mm
Body Material
Glass
Package/Case
125
Contact Material
Brass
Contact Plating
Nickel
Current
12.5A
Current Rating
125mA
DC Cold Resistance
4.2R
Diameter
5mm
Fuse Current
125mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Outside Diameter
20.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
42mR
RoHS Compliant
Yes
Series
218
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218.125MXP Datasheet
Download the complete datasheet for Littelfuse 0218.125MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

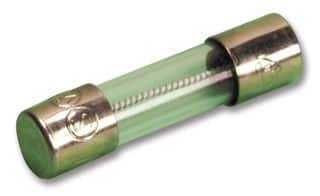

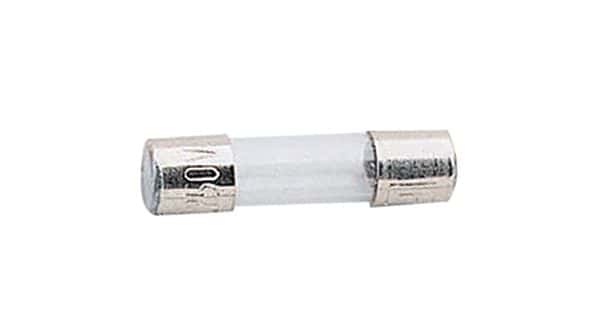

Product Images
