Time-delay electric fuse, 160mA current rating, 250VAC voltage rating, and 35A interrupting rating. Features a 5x20mm glass body with brass, nickel-plated contacts. Designed for supplemental circuit protection, suitable for inline or holder mounting. Operates across a wide temperature range from -55°C to 125°C. Compliant with RoHS standards and holds multiple international approvals including UL, CSA, and VDE.
Storage20mm
Resistance2.44R
Voltage Rating250V
Current Rating160mA
Quick Jump:
Technical Specifications
Littelfuse 0218.160MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Diameter
20mm
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
160mA
DC Cold Resistance
2.55R
Diameter
5mm
Fuse Current
160mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
20.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
Unknown
Resistance
2.44R
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218.160MXP Datasheet
Download the complete datasheet for Littelfuse 0218.160MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

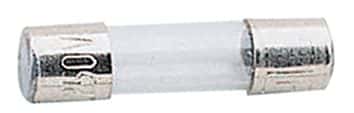

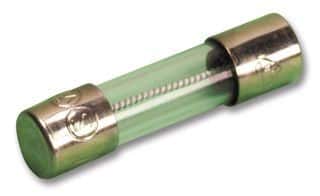

Product Images
