Time lag electric fuse, 315mA current rating, 250VAC voltage rating, and 35A interrupt rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm size. Compliant with UL, CSA, VDE, CE, CCC, SEMKO, and K-Mark approvals. Designed for supplemental circuit protection with a holder mount and through-hole termination. Operating temperature range from -55°C to 125°C, with a maximum power dissipation of 1.6W.
Storage20mm
Resistance848mR
Voltage Rating250V
Current Rating315mA
Quick Jump:
Technical Specifications
Littelfuse 0218.315HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
315mA
DC Cold Resistance
847.5mR
Diameter
5.2mm
Fuse Current
315mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Holder, Through Hole, Clip
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
848mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218.315HXP Datasheet
Download the complete datasheet for Littelfuse 0218.315HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

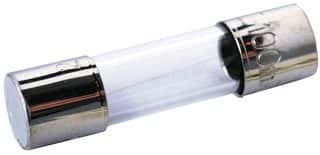

Product Images
