Time delay electric fuse, 315mA current rating, 250VAC voltage rating, and 35A interrupting rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm size. Suitable for inline or holder mounting with through-hole termination. Operating temperature range from -55°C to 125°C. RoHS compliant and includes multiple international approvals.
Package315
Storage20mm
Resistance848mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0218.315MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Package/Case
315
Contact Material
Brass
Contact Plating
Nickel
Current Rating
315mA
DC Cold Resistance
847.5mR
Diameter
5mm
Fuse Current
315mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
848mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218.315MXP Datasheet
Download the complete datasheet for Littelfuse 0218.315MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

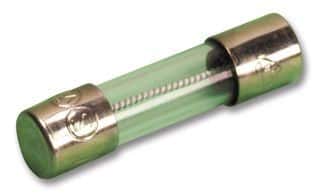

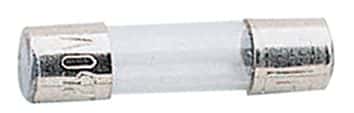

Product Images
