Time-delay electric fuse with a 1A current rating and 250VAC voltage rating. Features a 35A interrupting rating and a 5x20mm glass body. Compliant with UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark approvals. Designed for supplemental circuit protection with brass contacts plated in nickel. RoHS compliant and operates within a temperature range of -55°C to 125°C.
Storage20mm
Resistance61.3mR
Voltage Rating250V
Current Rating1A
Quick Jump:
Technical Specifications
Littelfuse 0218001.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
1A
DC Cold Resistance
61.3mR
Diameter
5mm
Fuse Current
1A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
61.3mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218001.MXP Datasheet
Download the complete datasheet for Littelfuse 0218001.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

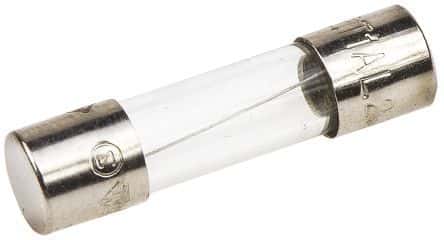

Product Images
