Time delay electric fuse, 2A current rating at 250VAC, with a 35A interrupting rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm size. Designed for supplemental circuit protection with holder mounting and through-hole termination. RoHS compliant and approved by UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark. Operating temperature range from -55°C to 125°C.
Storage20mm
Resistance29mR
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Littelfuse 0218002.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
2A
DC Cold Resistance
29.3mR
Diameter
5mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
29mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218002.MXP Datasheet
Download the complete datasheet for Littelfuse 0218002.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

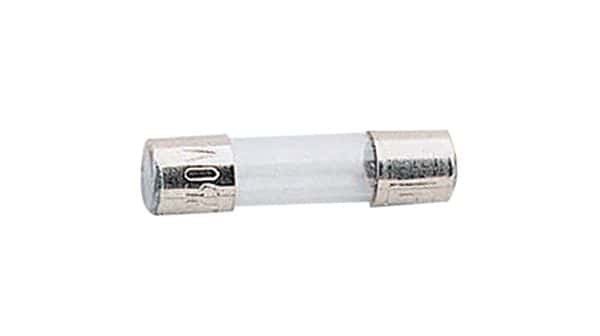

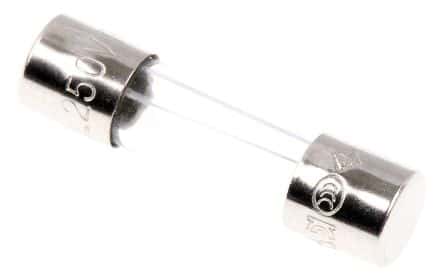

Product Images
