Time lag electric fuse, 5A current rating, 250VAC voltage rating, and 50A interrupt rating. Features a 5x20mm glass body with brass, nickel-plated contacts. Suitable for inline or holder mounting with through-hole termination. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 10.4mR. UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark approvals.
Storage20mm
Resistance10mR
Voltage Rating250V
Current Rating5A
Quick Jump:
Technical Specifications
Littelfuse 0218005.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
5A
DC Cold Resistance
10.4mR
Diameter
5mm
Fuse Current
5A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
10mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218005.MXP Datasheet
Download the complete datasheet for Littelfuse 0218005.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

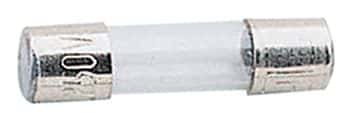

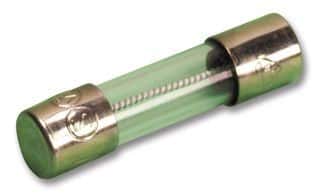

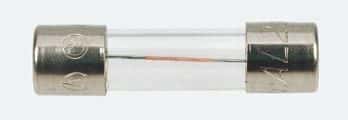

Product Images
