Time delay electric fuse with a 1.6A current rating and 250VAC voltage rating. Features a 35A interrupting rating and a 5x20mm glass body. Constructed with brass contacts plated in nickel, this fuse offers a DC cold resistance of 33.6mR and a power dissipation of 1.6W. Designed for supplemental protection, it mounts via a holder with through-hole termination and operates within a temperature range of -55°C to 125°C. RoHS compliant.
Resistance33.6mR
Voltage Rating250V
Current Rating1.6A
MountingHolder, Through Hole
Quick Jump:
Technical Specifications
Littelfuse 021801.6MXP technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
1.6A
DC Cold Resistance
33.6mR
Diameter
5mm
Fuse Current
1.6A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
33.6mR
RoHS Compliant
Yes
Series
218
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021801.6MXP Datasheet
Download the complete datasheet for Littelfuse 021801.6MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

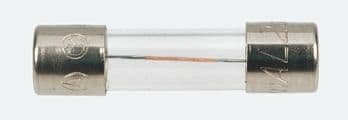

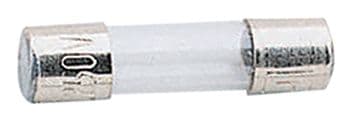

Product Images
