Miniature slow-blow fuse, 15A current rating, 250V AC/DC voltage rating. Features a glass body with brass, nickel-plated clip terminations. Designed for holder mounting with a 5mm diameter and 20mm length (5x20mm cartridge size). Operating temperature range from -55°C to 125°C, with 2.8mR DC cold resistance and 4W power dissipation. Bulk packaged, RoHS compliant, and holds UL, CSA, VDE, and PSE approvals.
Package100
Storage20mm
Resistance2.8mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0218015.MXP technical specifications.
General
Approvals
UL, CSA, VDE, PSE
Blow Characteristic
TIME DELAY
Body Diameter
20mm
Body Material
Glass
Package/Case
100
Contact Material
Brass
Contact Plating
Nickel
Current Rating
15A
DC Cold Resistance
2.8mR
Diameter
5mm
Fuse Current
15A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
20.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
2.8mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218015.MXP Datasheet
Download the complete datasheet for Littelfuse 0218015.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

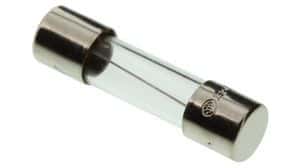

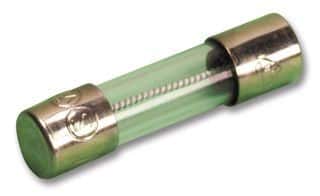

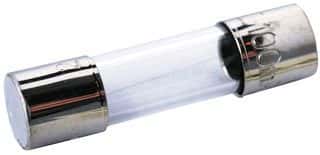

Product Images
