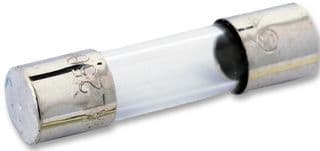

Time-lag electric fuse, 6.3A current rating, 250VAC voltage rating, and 63A interrupting rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm size. Suitable for inline or holder mounting with through-hole termination. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Storage20mm
Resistance7.5mR
Voltage Rating250V
Current Rating6.3A
Quick Jump:
Technical Specifications
Littelfuse 021806.3HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
6.3A
DC Cold Resistance
7.6mR
Diameter
5.2mm
Fuse Current
6.3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
7.5mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 021806.3HXP Datasheet
Download the complete datasheet for Littelfuse 021806.3HXP to view detailed technical specifications.
