Time delay electric fuse, 1.25A current rating, 250VAC voltage rating, and 35A interrupt rating. Features a glass body and brass contacts with glass plating. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 44.6mR. Mounts via holder with through-hole termination, compliant with UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark approvals, and is RoHS compliant.
Storage20mm
Resistance44.6mR
Voltage Rating250V
Current Rating1.25A
Quick Jump:
Technical Specifications
Littelfuse 02181.25MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Glass
Current Rating
1.25A
DC Cold Resistance
44.6mR
Diameter
5mm
Fuse Current
1.25A
Lead Free
Lead Free
Length
20mm
Manufacturer Series
218
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
44.6mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 02181.25MXP Datasheet
Download the complete datasheet for Littelfuse 02181.25MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

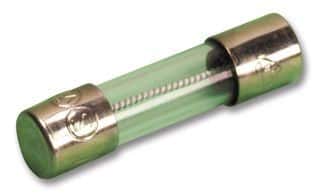

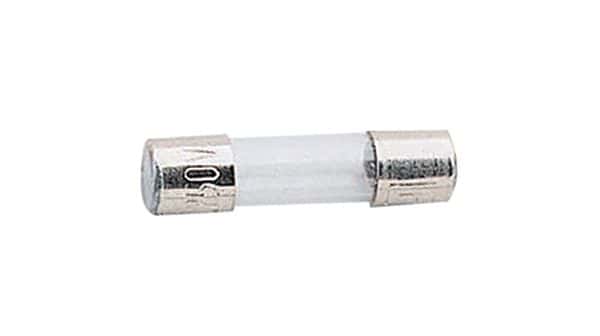

Product Images
